Orbit Velocity electric assist Steps E6100
Pricing
Price £4000.00
In stock - Test ride model available
Test ride model available.The Velocity E6100 is designed and built in the Yorkshire Dales using Shimano's E6100 mid-drive motor and is perfectly suited to the hills. The low gearing will take you up the steepest of climbs and the 3 brakes will take you down the steepest of descents with confidence.
The Velocity can take plenty of luggage with the front fork being rack compatible too, and it's 48 spoke wheels make it a great touring machine.
The Velocity is assembled for each customer so we can customise it to suit you exactly, drop handlebars are an option on the front as well.
Weight, as pictured, 26.81kg, length 252cm or 250cm with a 38c tyre.
A drop handlebar model is available at an extra cost of £300.
Specifications
Ask Us
Reviews
Related
| Options | 19/15" Satin black 21/17" Satin black 19/15" Gloss red 21/17" Gloss red |
|---|---|
| Description | Comes with 418wh battery & lighter weight charger |
| Frame | Orbit lightweight aluminium |
| Forks | Orbit full chromoly steel disc |

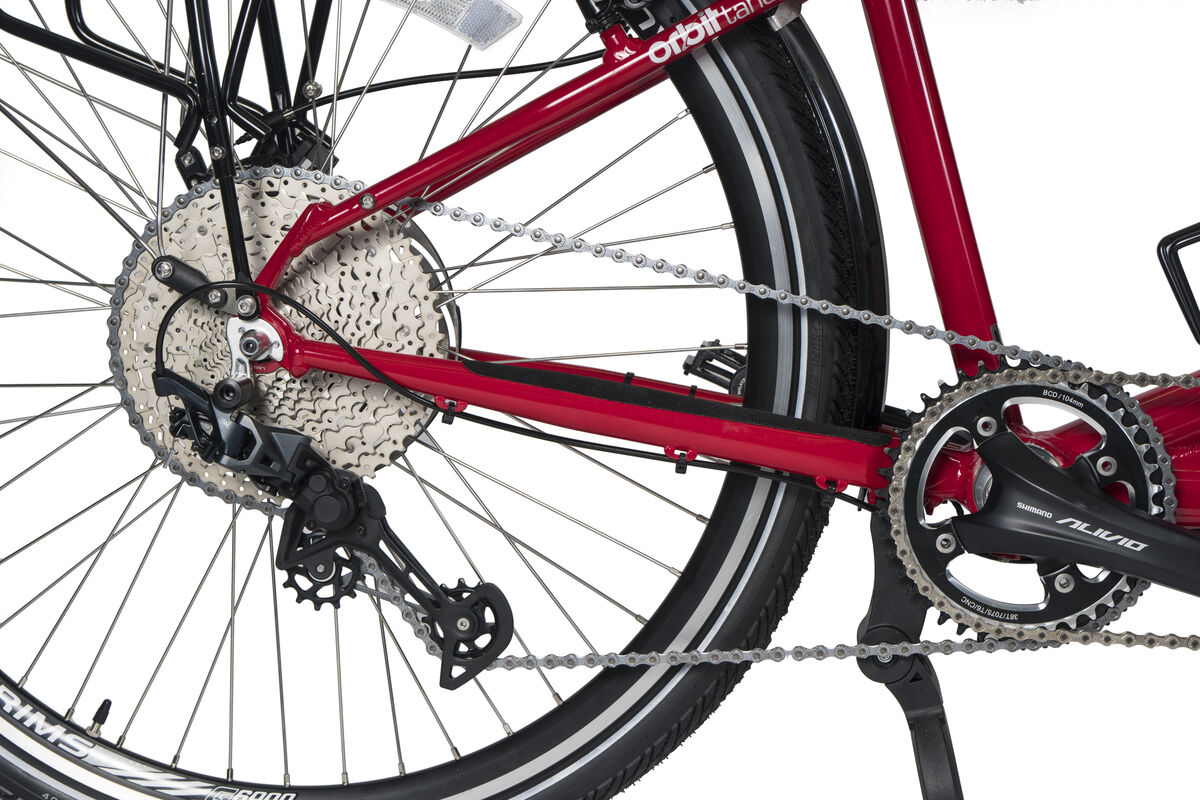

| Rear Derailleur | Shimano Deore 11 speed |
| Front Derailleur | None |
| Shifters | Shimano Deore 11 speed right hand shift lever |

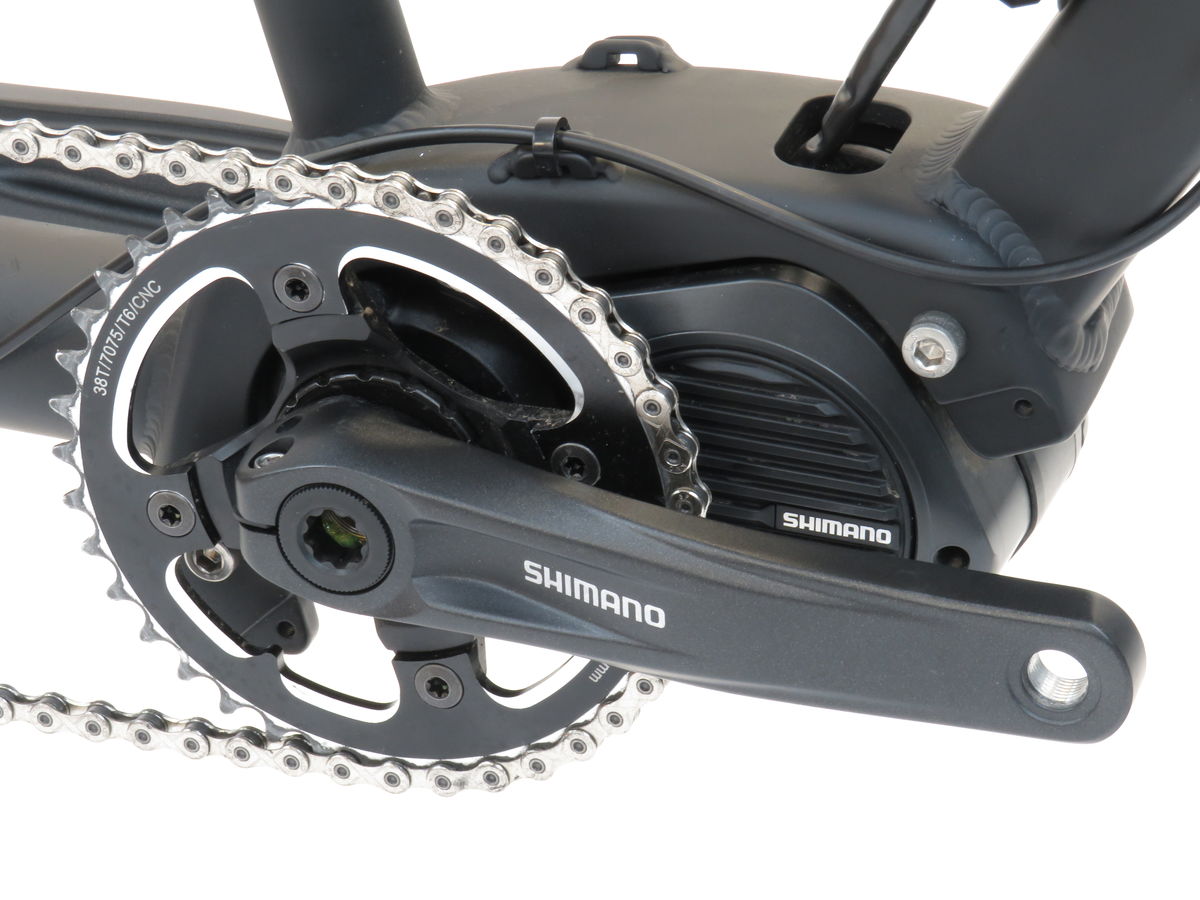

| Chainset (Pilot) | Shimano 170mm crank length with Steps E6100 motor |
| Chainset (Stoker) | Orbit & 38 tooth drive ring |
| Bottom Bracket (Pilot) | Steps |
| Bottom Bracket (Stoker) | Eccentric & Square taper 115mm |
| Chain (Crossover) | KMC nickel plated 160 link |
| Chain (Rear) | KMC E11 speed |
| Cassette | Shimano cassette 11 speed 11/42 |
| Pedals (Pilot) | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups |

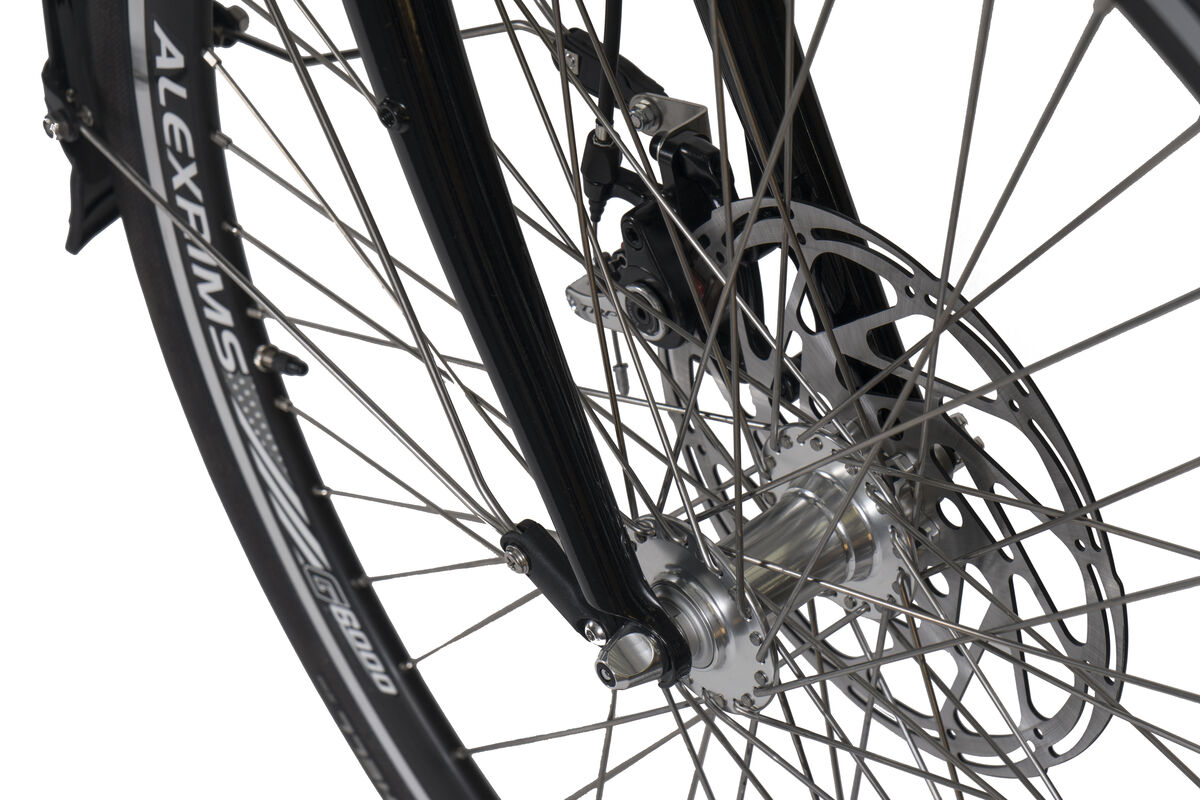

| Front Brake | Bengal cable pull disc brake, with 203mm rotor |
| Rear Brake | Bengal cable pull disc brake, with 203mm rotor |
| 3rd Brake | Shimano V brake, controlled from the front handlebars with Shimano friction lever |
| Brake Levers | Shimano |
| Front Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc 48 hole |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD 48 hole |
| Rims | Deep section aero |
| Spokes | Sapim Strong butted stainless |
| Tyres | Schwalbe Marathon E plus 700 x 38c or 47c |
| Headset | Tange 1 1/8" semi intergated, cartridge bearing |
| Stem (Pilot) | Satori 31.8mm ahead |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm |
| Handlebars (Pilot) | Zoom black riser, 31.8 clamp size |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width & 4.5cm stoker riser |
| Saddle (Pilot) | Velo plush comfort touring |
| Saddle (Stoker) | Velo plush comfort touring |
| Seatpost (Pilot) | Black alloy, 400mm x 27.2 |
| Seatpost (Stoker) | Elegance suspension seat post 40mm travel |
| Grips (Pilot) | Wave ergo lock-on with integrated bar ends |
| Grips (Stoker) | Velo black cork bar tape |
| Pannier Rack (Front) | - |
| Pannier Rack (Rear) | Black alloy 3 leg |
| Bottle Cages | 2 alloy |
| Mudguards | Black or silver with stainless steel fittings Prop stand included |
| Extras | Every Orbit Tandem is built to order, so should you wish to change any part of the specification please get in touch. Planning a trip? Additional batteries are available to hire please ask for further details. Can be built into a drop handlebar model for an extra £300 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
